• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel, includes steel spare (Requires CG13405 or CH13405 models.)
• Tires, front P245/70R17 all-season, blackwall (Requires CG13405 or CH13405 models standard tire. Available with (ZX9) spare tire delete.)
• Tires, rear P245/70R17 all-season, blackwall (Requires CG13405 or CH13405 models standard tire.)
• Tire, spare P245/70R17 all-season, blackwall (Requires CG13405 or CH13405 models standard tire.)
• Door, swing-out passenger-side, 60/40 split
• Bumpers, front and rear painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

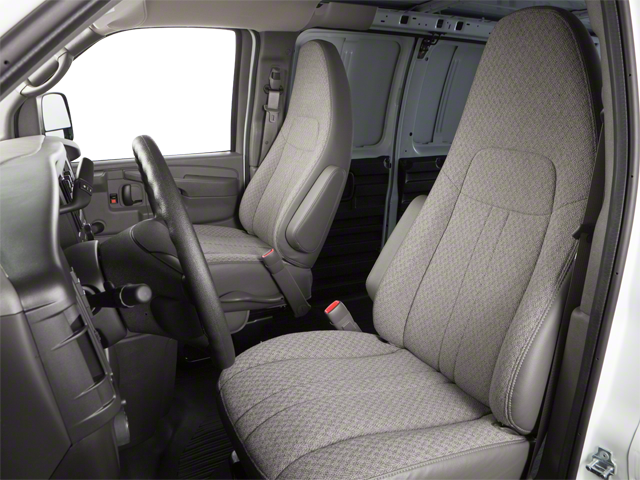

• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim.)
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)

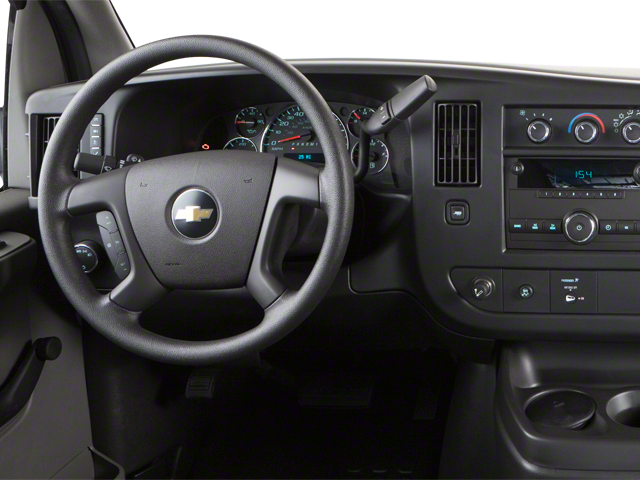

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (TR9) auxiliary lighting.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Trim panels, hinged rear side doors and hinged rear doors
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
• Lighting, auxiliary with reading and underhood lights (Standard on CG13405 and CH13405 models. Includes (U80) 8-point digital compass. Included with (PCR) Express Access Plus Package. Not available with (YF2) Ambulance Package.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models CG23405, CG23705, CG33405 and CG33705. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain (Standard on CG13405 and CH13405 models. Requires (AK5) driver and right-front passenger air bags and (TR9) auxiliary lighting. Not available with (AJ3) driver-side only frontal air bag and SEO option (5L3) interior trim panels. Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Tire Pressure Monitoring System (does not apply to spare tires)

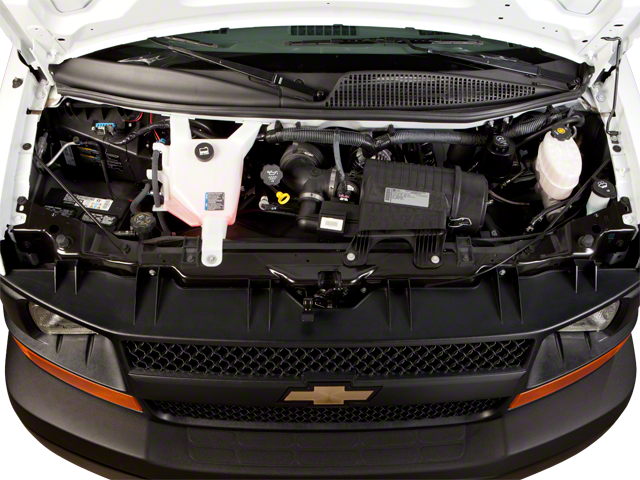

ENGINE, VORTEC 4.3L V6 MFI

• (195 hp [145.4 kW] @ 4600 rpm
• 260 lb-ft of torque [351.0 N-m] @ 2800 rpm) (STD)

• Preferred Equipment Group 1
• 3.42 Rear Axle Ratio
• 17" x 7" Steel Wheels
• Reclining High-Back Front Bucket Seats
• Vinyl Seat Trim
• Driver & Passenger High-Back Bucket Seats

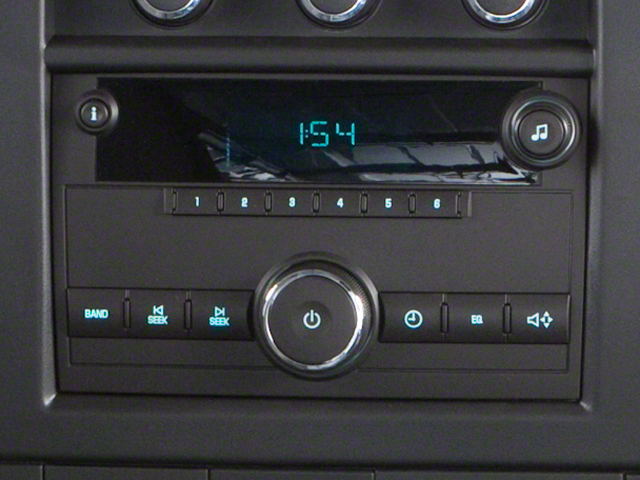

• AM/FM Stereo w/Seek & Scan/Digital Clock
• Inside Rear-View Manual Day/Night Mirror
• OnStar 6 Months Directions & Connections Plan
• Fixed Rear Door Glass
• Fixed Rear Door Window Glass
• 145 Amp Alternator
• Auxiliary Lighting
• 8-Point Digital Compass
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• Compass
• 2 Speakers

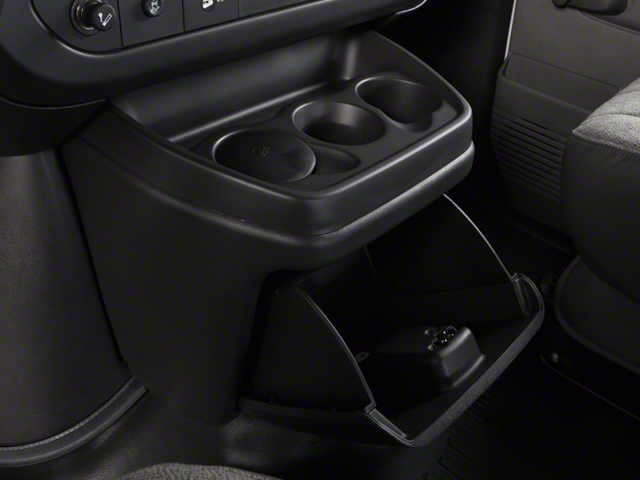

• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 11.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2631
• Curb Weight - Rear (lbs): 2287
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4300
• Dead Weight Hitch - Max Tongue Wt. (lbs): 430
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 645
• Maximum Trailering Capacity (lbs): 6700
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): - TBD -
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 28.40
• Ground Clearance, Front (in): 8.00
• Ground Clearance, Rear (in): 7.40
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.40
• Step Up Height - Side (in): 20.60
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 124.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 52.90
• Cargo Volume (ft³): 239.7
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
